TarGun drones offer numerous advantages: they do not require a crew, allowing personnel to focus on more critical tasks. They do not need rest, and their loss is significantly less costly compared to the loss of a traditional truck with a crew. Unmanned systems can automate routine logistics tasks, completing them faster and more efficiently than humans.

Length

730 mm
Width

590 mm
Height

400 mm
Weight

30 kg
Clearance

160 mm
Category:
Description

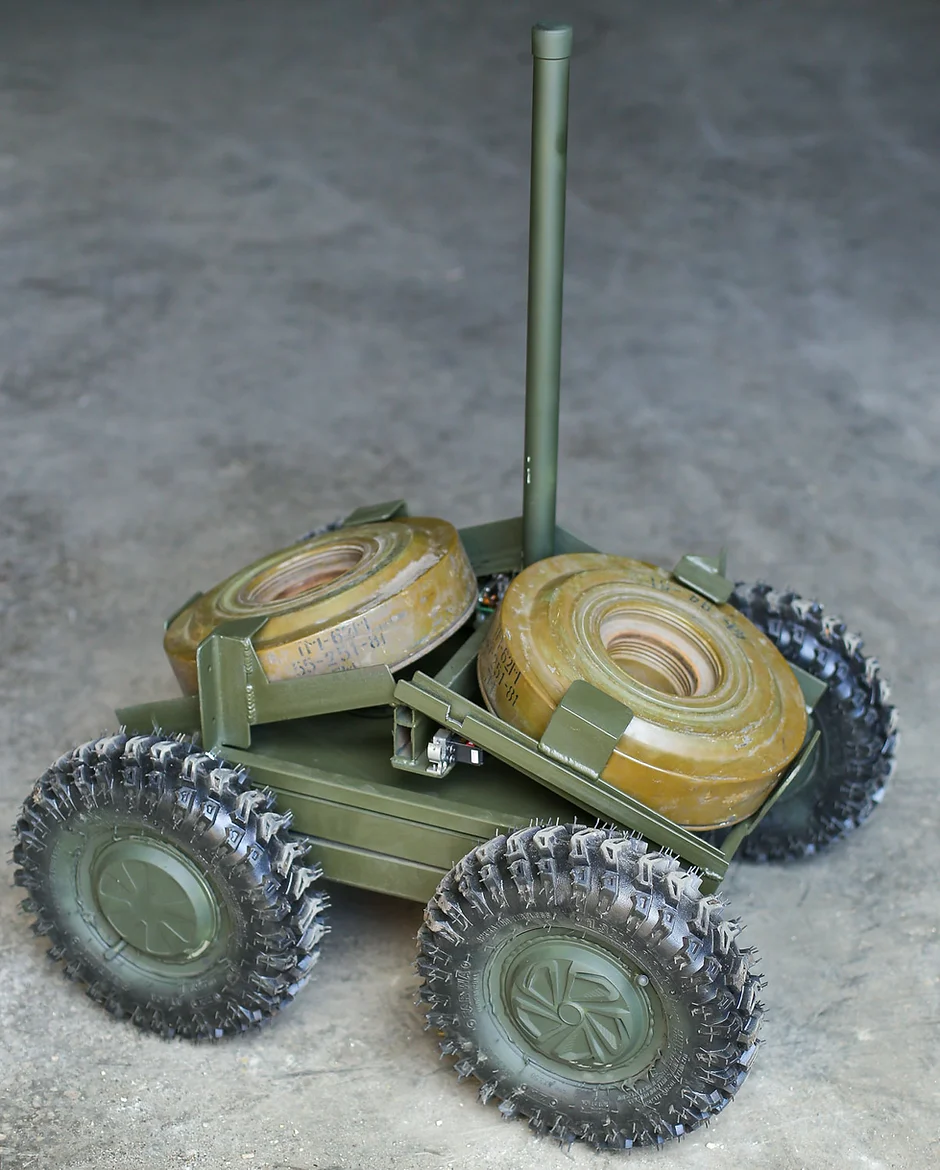

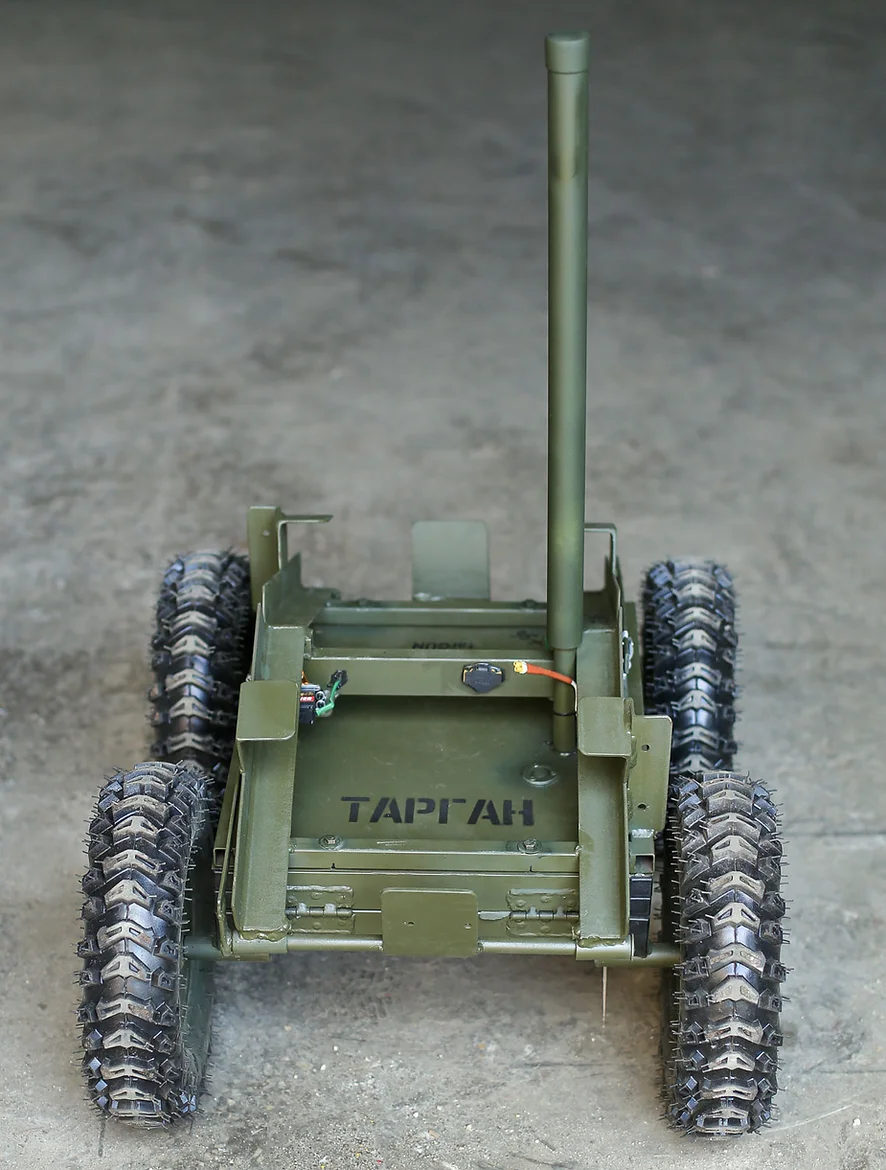

Minesweeper for 2 TMs

Control range up to 2000 meters
2 anti-tank mines on board.
Range up to 20 km. Travel time up to 2 hours.
Battery life up to 48 hours.
Remote radio control.
On-board camera for movement control

(optional)

COMBAT SPECIFICATIONS:

  1. MAXIMUM TARGET ENGAGEMENT RANGE – 5 km
  2. TACTICAL OPERATION RADIUS OF THE NRV – 1.5 km
  3. RADIO CHANNEL COMMUNICATION RANGE:
    • ON OPEN TERRAIN (LINE OF SIGHT) – 2 km
    • ON COMPLEX TERRAIN (HILLS, FOREST) OR INDUSTRIAL AREAS – 1.5 km
  4. RANGE ON A SINGLE BATTERY CHARGE OR FUEL SUPPLY:
    • ON HARD SURFACE – 20 km
    • OFF-ROAD – 4 km
  5. CONTINUOUS OPERATION TIME – 2 hours
  6. AUTONOMOUS OPERATION WITHOUT MOVEMENT – 24 hours
  7. MAXIMUM MOVEMENT SPEED OF THE NRV:
    • ON HARD SURFACE – 22 km/h
    • OFF-ROAD – 15 km/h
  8. OPTICAL-ELECTRONIC RECONNAISSANCE EQUIPMENT:
    • DAYTIME VIDEO CAMERA – 5.8G
  9. DETECTION AND RECOGNITION RANGE FOR TYPICAL TARGETS
    (e.g., tank, vehicle, standing figure) with video camera – 1000 m
  10. DEPLOYMENT AND PREPARATION TIME – 1 min
  11. TEARDOWN TIME – 1 min

TECHNICAL SPECIFICATIONS:

  1. TYPE OF BASE PLATFORM – MODULAR
  2. TYPE OF NRV CHASSIS – WHEELED
  3. TYPE OF POWER UNIT – ELECTRIC
  4. NRV WEIGHT:
    • FULL – 30 kg
    • EQUIPPED – 30 kg
  5. PAYLOAD CAPACITY – 50 kg
  6. TARGET LOAD RESOLUTION:
    • DAY CAMERA – 795×596
  7. NRV TRANSPORTATION METHOD – TRUNK
  8. CHANNEL CHARACTERISTICS:
    • CONTROL AND TELEMETRY – 868-915
    • VIDEO – 5.8
  9. TERRAIN MOVEMENT MODES IMPLEMENTED:
    • MANUAL
  10. NRV DIMENSIONS – 730×590×400 mm
  11. OBSTACLES OVERCOME ON DRY TURFED SOIL:
    • MAXIMUM CLIMB ANGLE – 40°
    • MAXIMUM TILT ANGLE – 30°
    • TRENCH (DITCH) WIDTH – 0.2 m
    • VERTICAL WALL HEIGHT – 120 mm
    • MAXIMUM WADING DEPTH WITH SOLID BOTTOM – 0.15 m
  12. CLEARANCE – 160 mm
  13. NRV CHASSIS CAMERA FIELD OF VIEW:
    • HORIZONTAL PLANE – 175°
    • VERTICAL PLANE – 90°

OPERATIONAL SPECIFICATIONS:

  1. NUMBER OF OPERATORS – 1 person
  2. WARRANTY PERIOD OF NRV OPERATION – 0.2–1 year
  3. MEAN TIME BETWEEN FAILURES (MTBF) – 2
  4. RESOURCE INDICATORS (engine hours or mileage before decommissioning/repair) – 500
  5. NUMBER OF NRV UNITS IN ONE COMPLEX – 1
  6. NUMBER OF GROUND CONTROL STATIONS IN NRV – 1
  7. OPERATIONAL RANGE:
    • TEMPERATURE (°C) – from -10 to +30
    • PRECIPITATION – snow, fog
    • WIND SPEED – up to 20 m/s
  8. PROTECTION LEVEL (ENCLOSURE SEALING) – IP65
  9. PRESENCE OF MAINTENANCE AND CONTROL TOOLS
  10. ROOT MEAN SQUARE DEVIATION (RMS) FROM TARGET – 1 m
  11. NOISE LEVEL DURING MOVEMENT:
    • AT MAXIMUM SPEED – 60 dB
    • AT AVERAGE SPEED – 40 dB

Additional:

  • 5.8g camera with 600mW transmitter, 42-12V converter.

Control set, if you don’t have one (1 for any number of products and FPV drones):

  • Radiomaster TX12 Mark II remote controller
  • Crossfire Micro TX V2 transmitter
  • Remote controller bag
  • 5.8 GHz FPV monitor, 4.3″
  • 5.8 GHz FPV monitor, 7″
